1, AIFEN F5pro host ×1
2, 11b integrated core ×1
3, wind x 6
4, TJ-218 bracket ×1
5, connect the wire ×1
6. Instructions ×1
7. Power cord x 1 Back To List

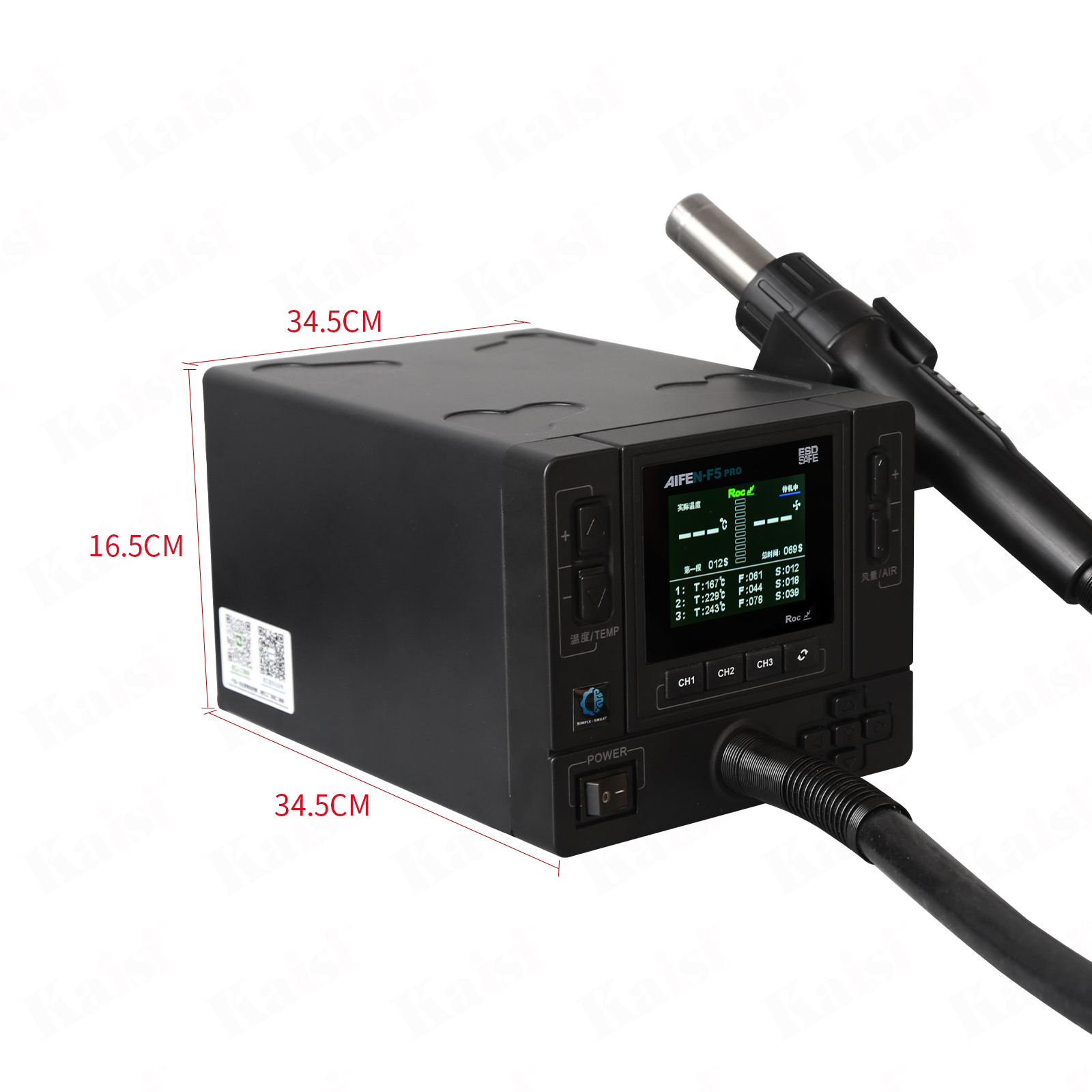

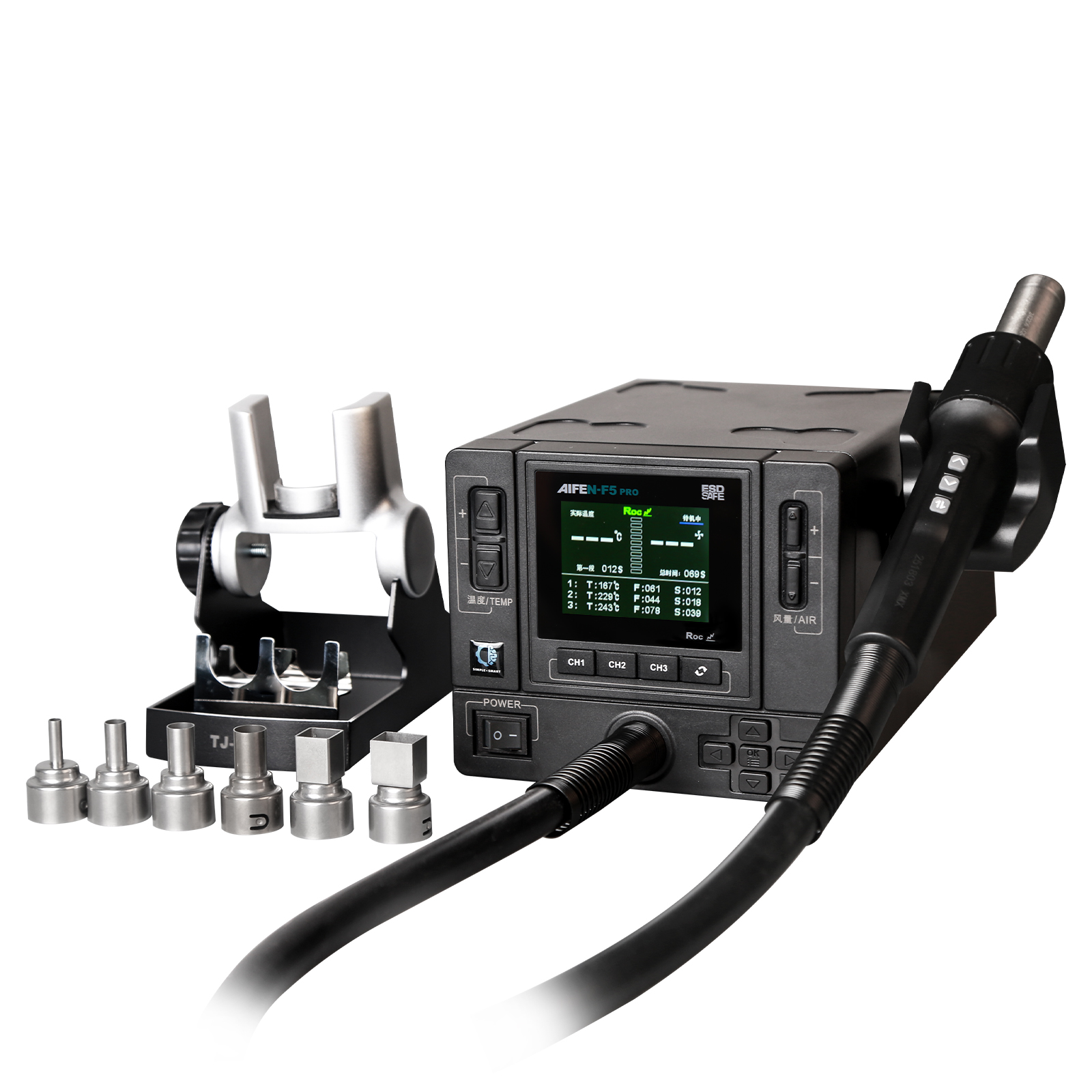

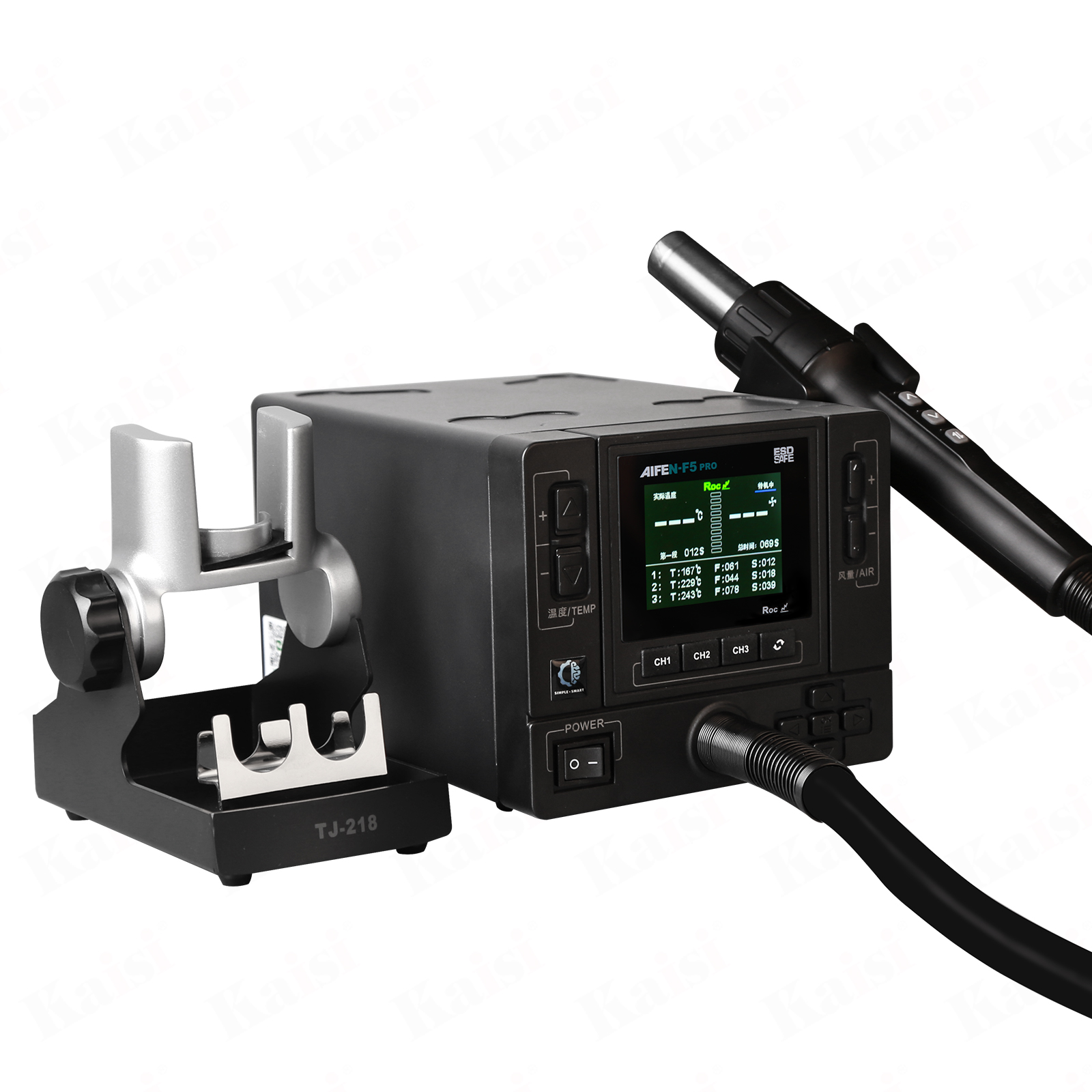

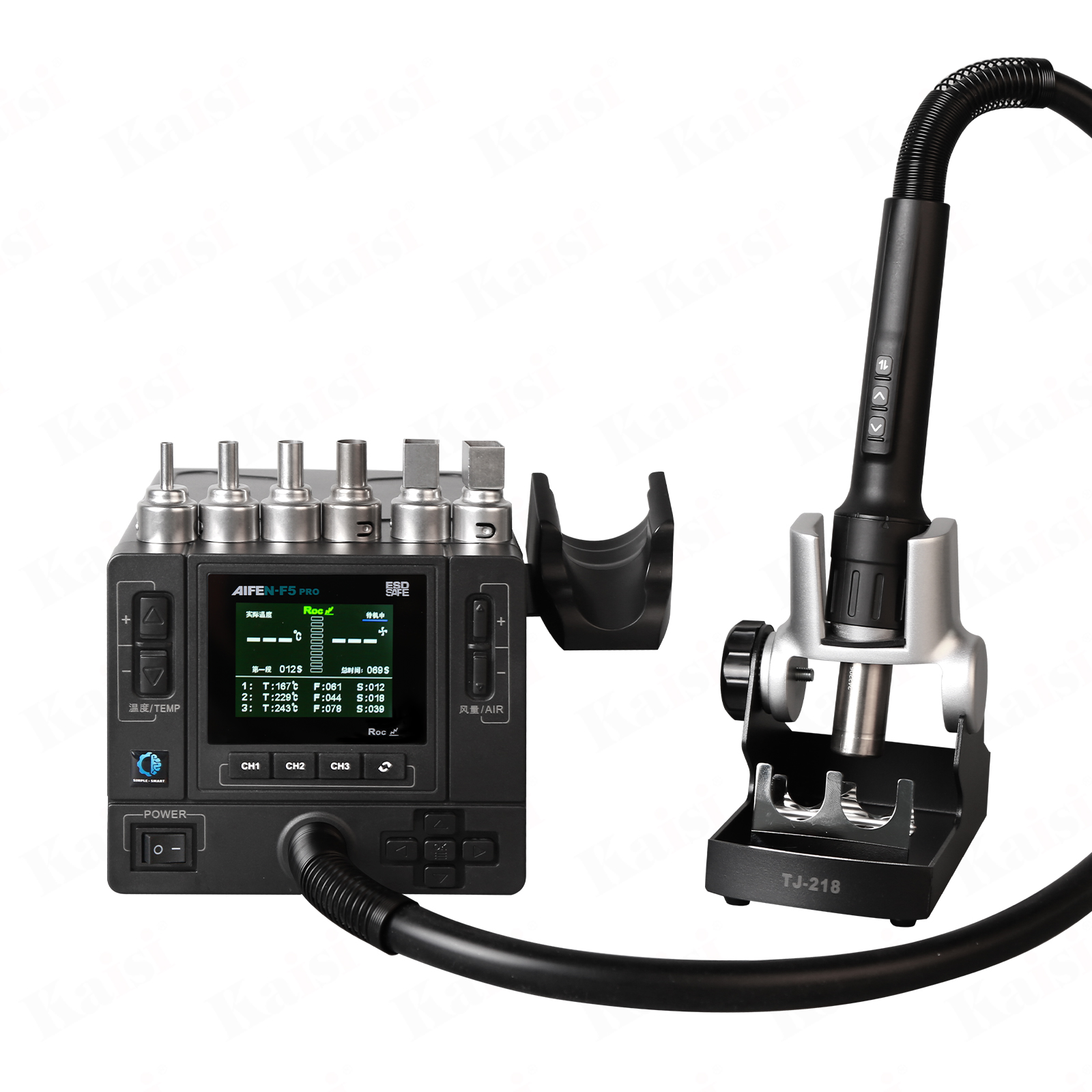

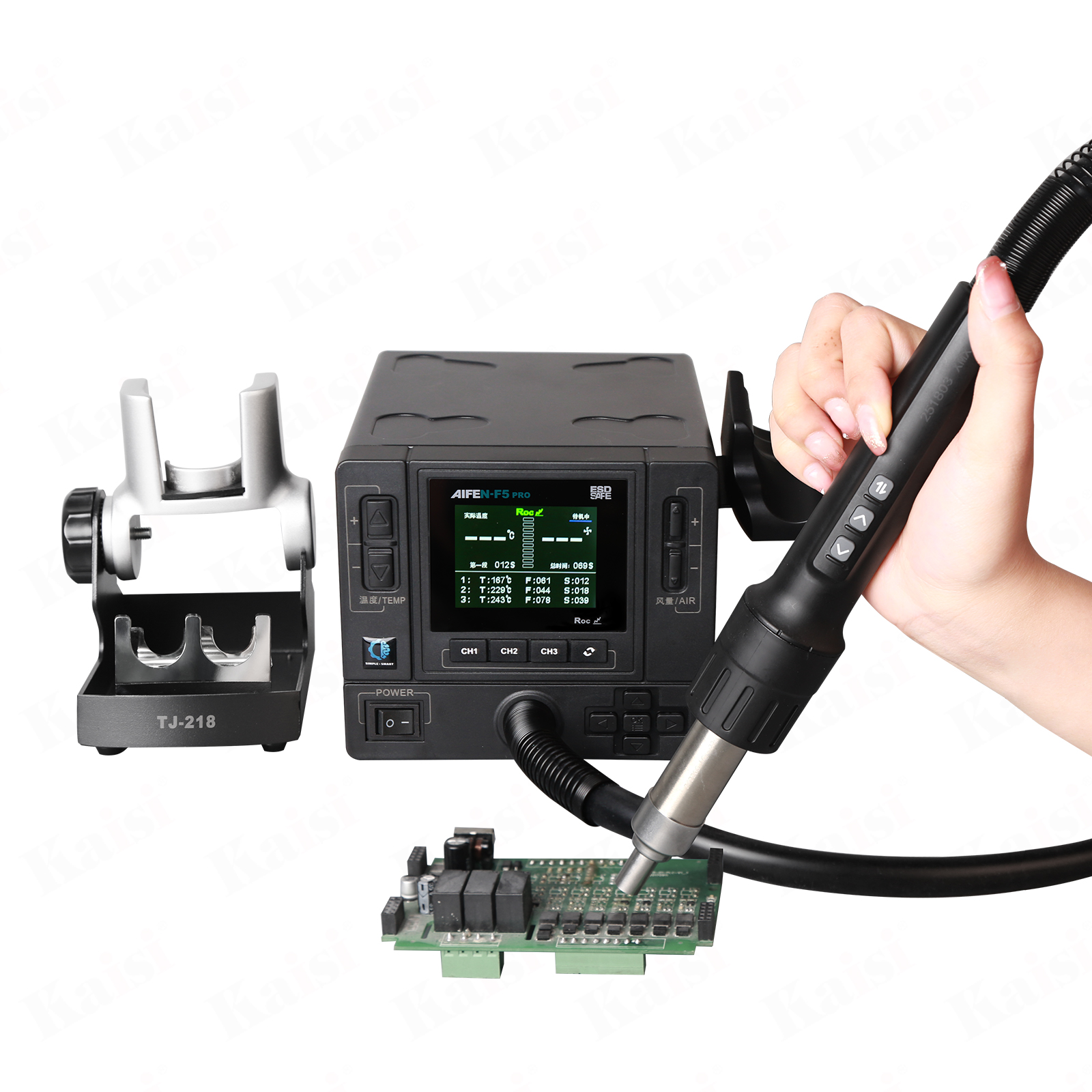

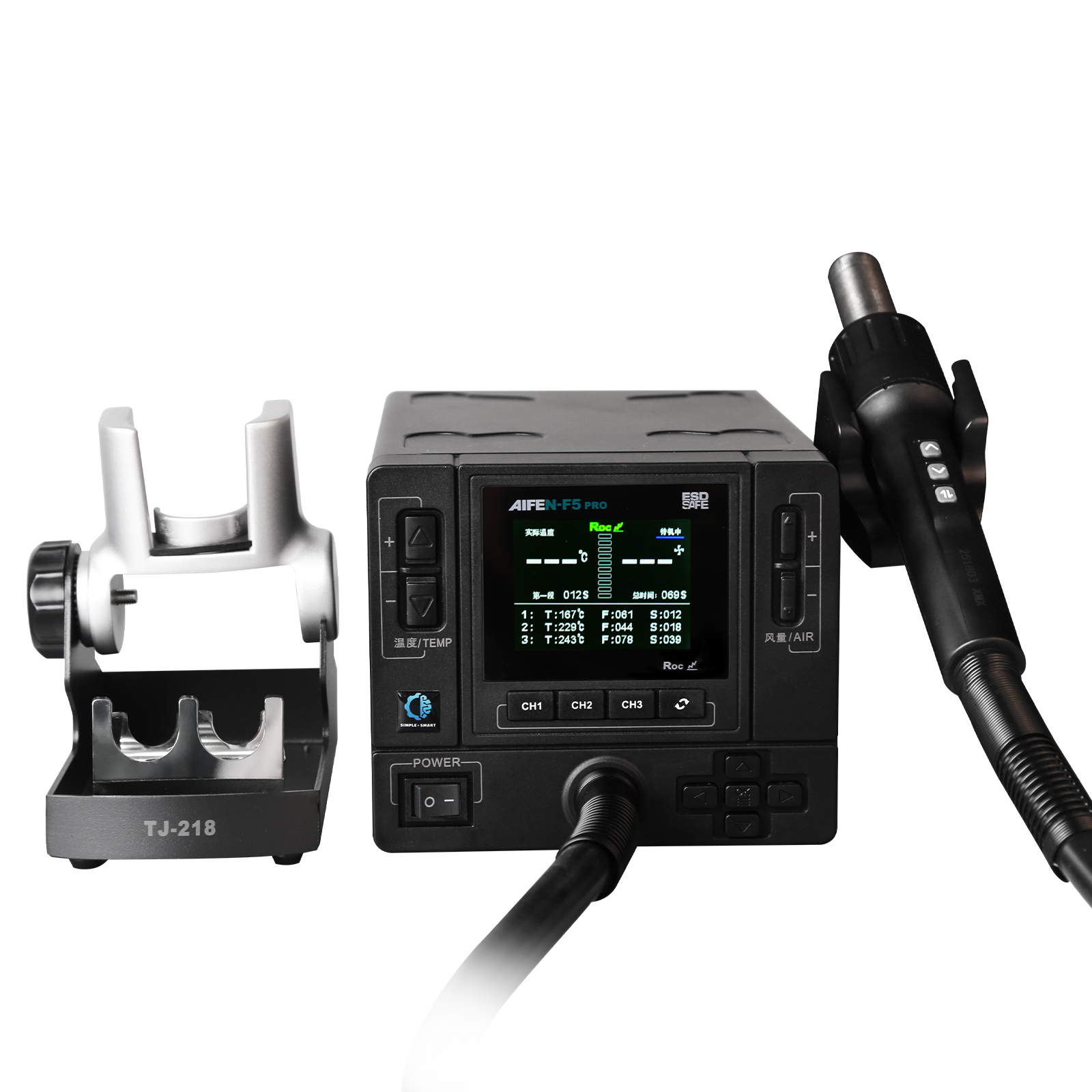

The AIFEN F5Pro Heat gun features a cool color display that enhances visual appeal and makes operation more intuitive. It has a unique temperature can be set segment curve heating function, preheating and rapid welding combined to meet different welding needs. Its Roc curve mode presets 3 groups of operating intervals, each group can set the preheating temperature and heating time freely. After each group reaches the preset temperature, it will automatically enter the next group of working mode. After the third group reaches the temperature, the machine will give a prompt tone to facilitate the dismantling operation. After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after each stage is completed until the three stages of heating are completed. Since the first two sections are preheating, only the third section of temperature air volume can be set, each section of temperature air volume can be freely set, a period of working time is up to 330 seconds. In addition, the newly designed wire controller and key control mode support temperature control mode and memory mode, making the operation more flexible and convenient. The upgraded version of the knob heating core does not need to be fixed with screws, and can be unlocked and replaced by hand twisting. The standard 7b heating core is equipped with one, which is more convenient to use. Switching power supply makes it small in size and light in weight, easier to carry and use. High speed small motor ensures strong air output and efficient and stable welding process. The new UI operation interface makes the operation easier and easier, and the novice can quickly get started. New 1515mm, 1517mm square wind nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient. In terms of technical parameters, the power is 1000W, the input voltage is AC 220V/50Hz or AC 110V/60Hz, the temperature range is 100℃-500℃ / 212°F-932°F, the air volume is 001-160, and the operating time of Roc mode is a total of three segments, each of which is up to 330 seconds.1. Color screen design - Use cool color display to enhance visual appeal and make the operation more intuitive.
2. Temperature can be set segment curve heating - a unique combination of preheating and rapid welding to meet different welding needs.
3. Roc curve mode - Preset 3 groups of working interval, each group can set the preheating temperature and heating time freely. After each group reaches the preset temperature, it will automatically enter the next group of working mode. After the third group reaches the temperature, the machine will give a prompt tone to facilitate the dismantling operation. After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after each stage is completed until the three stages of heating are completed. Since the first two sections are preheating, only the third section of temperature air volume can be set, each section of temperature air volume can be freely set, a period of working time is up to 330 seconds.
4. New wire controller and button control mode - support temperature control mode and memory mode, more flexible and convenient operation.

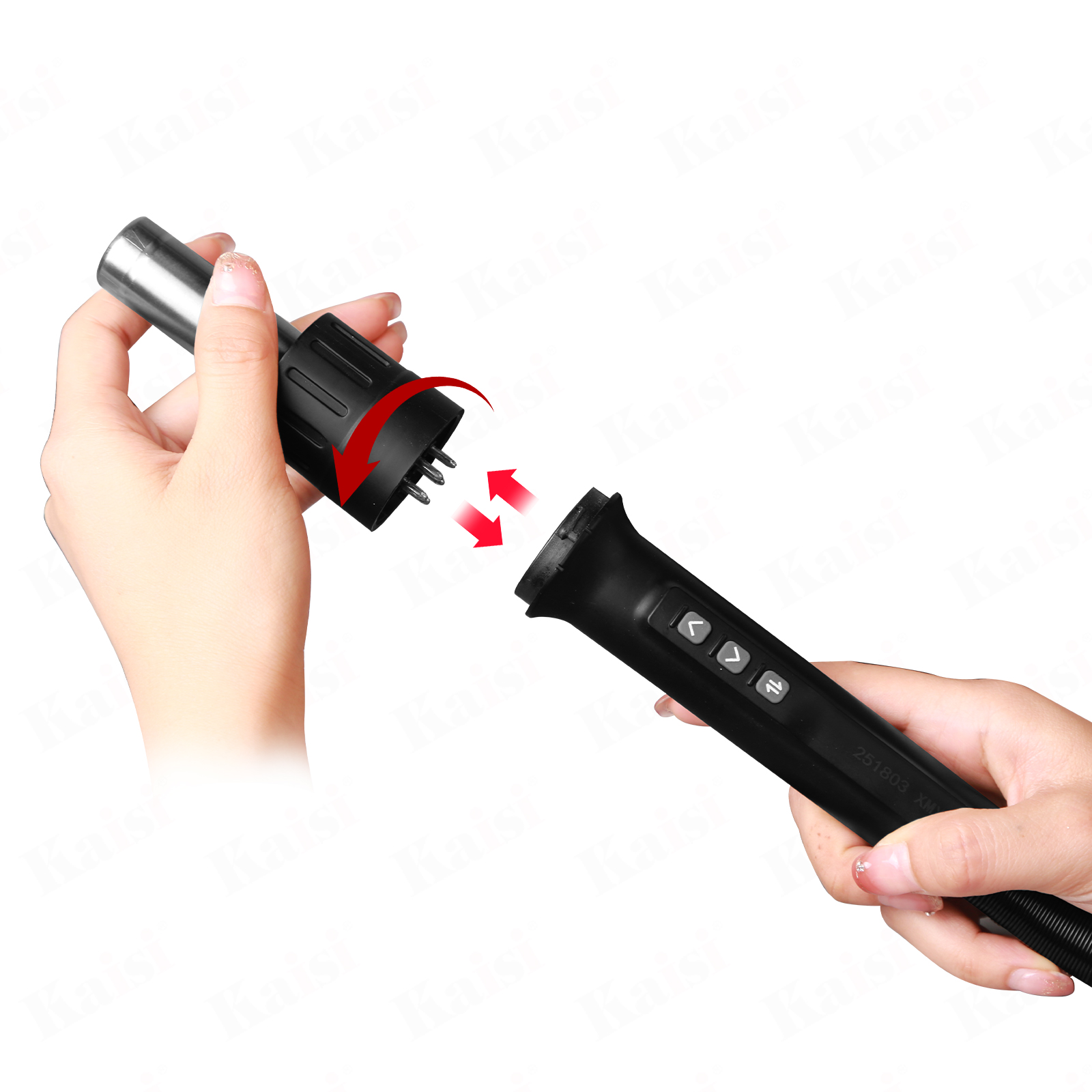

5. Upgraded knob heating core - no screws fixed, hand twist can be unlocked and replaced, standard 7b heating core, more convenient to use.
6. Switching power supply - small size and light weight, easier to carry and use.
7. High speed small motor - strong air output to ensure efficient and stable welding process.
8. New UI operation interface - the operation is more simple and convenient, and novices can quickly get started.
9. Add square air nozzle - add 1515mm, 1517mm square air nozzle each, with a special wind gun frame, welding motherboard more accurate and convenient.
