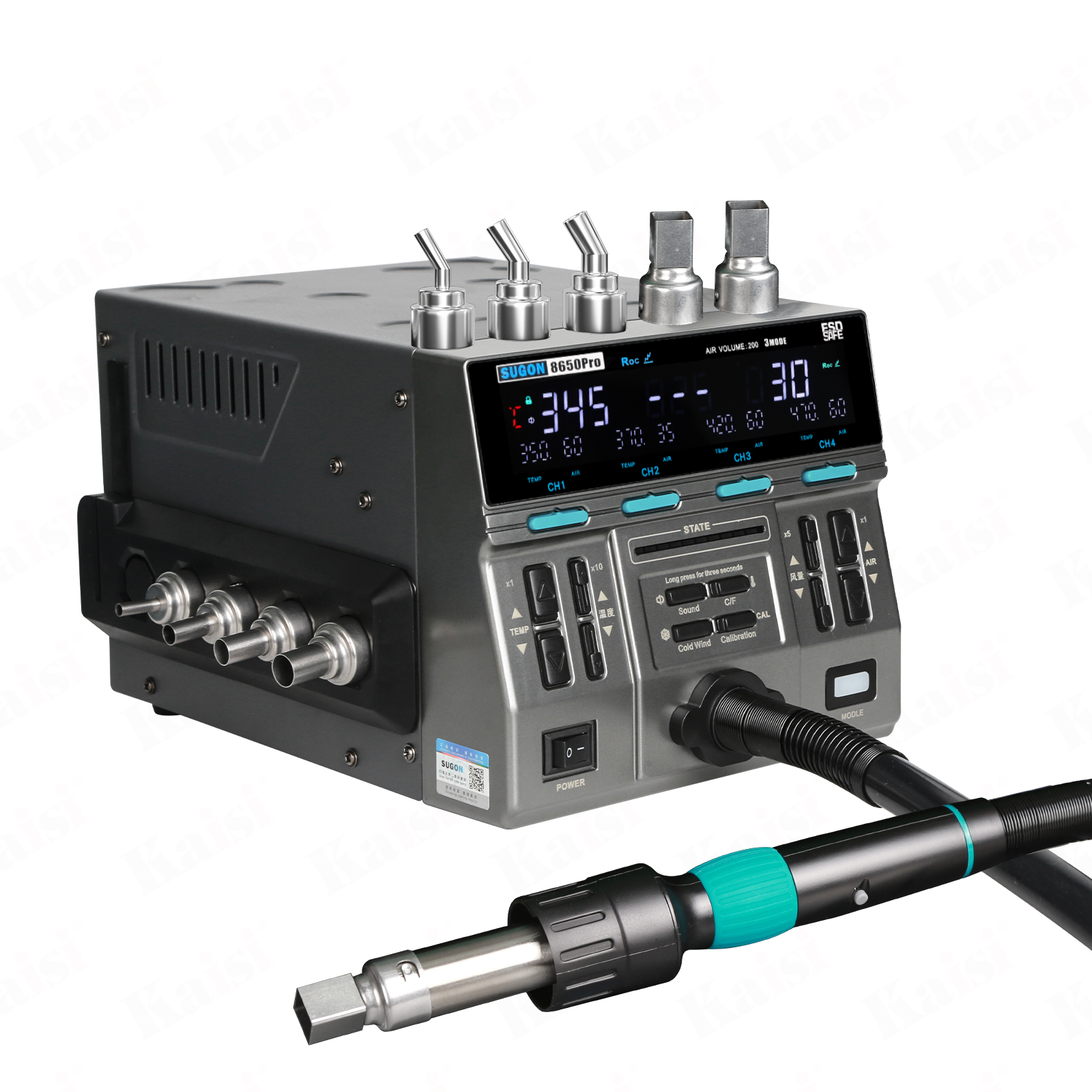

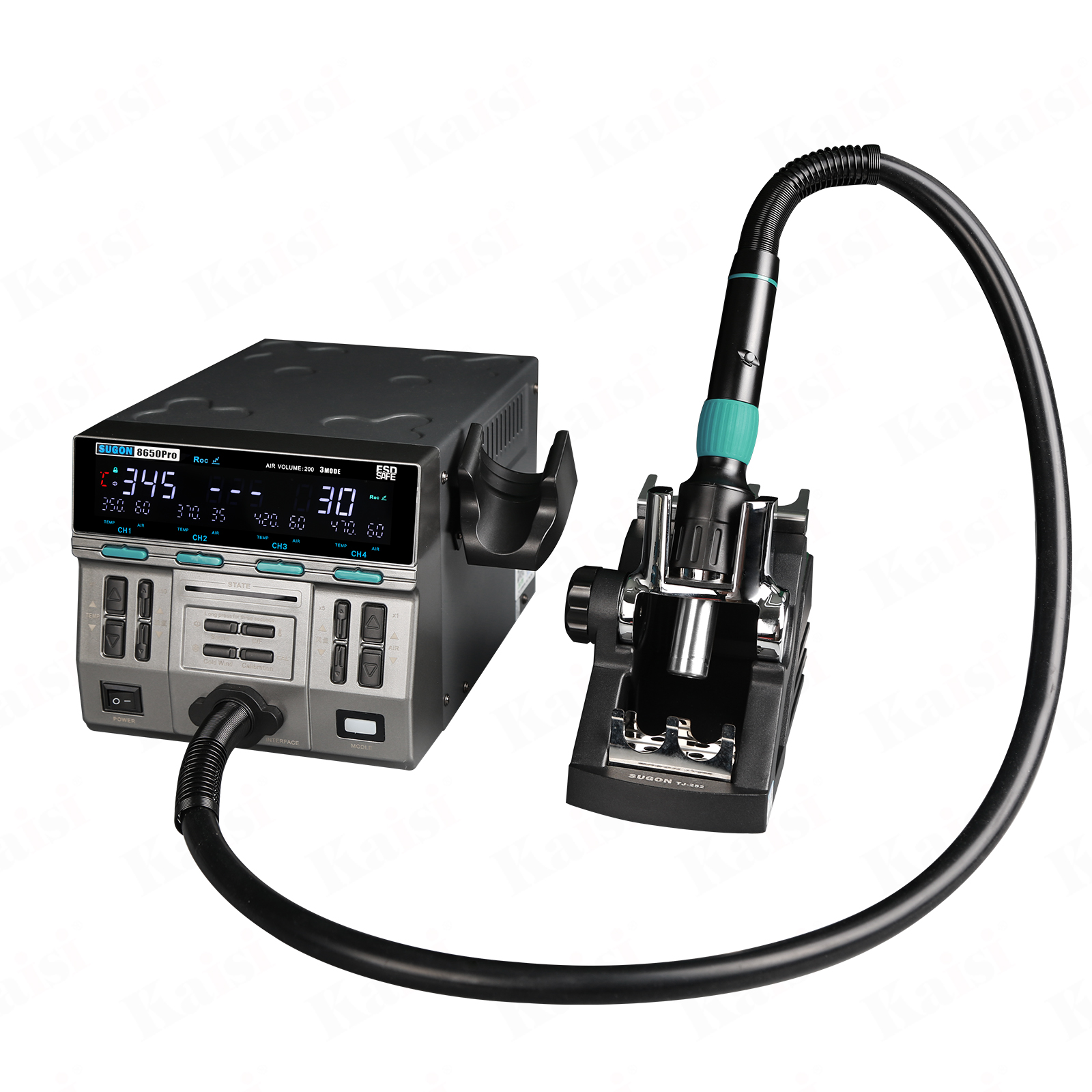

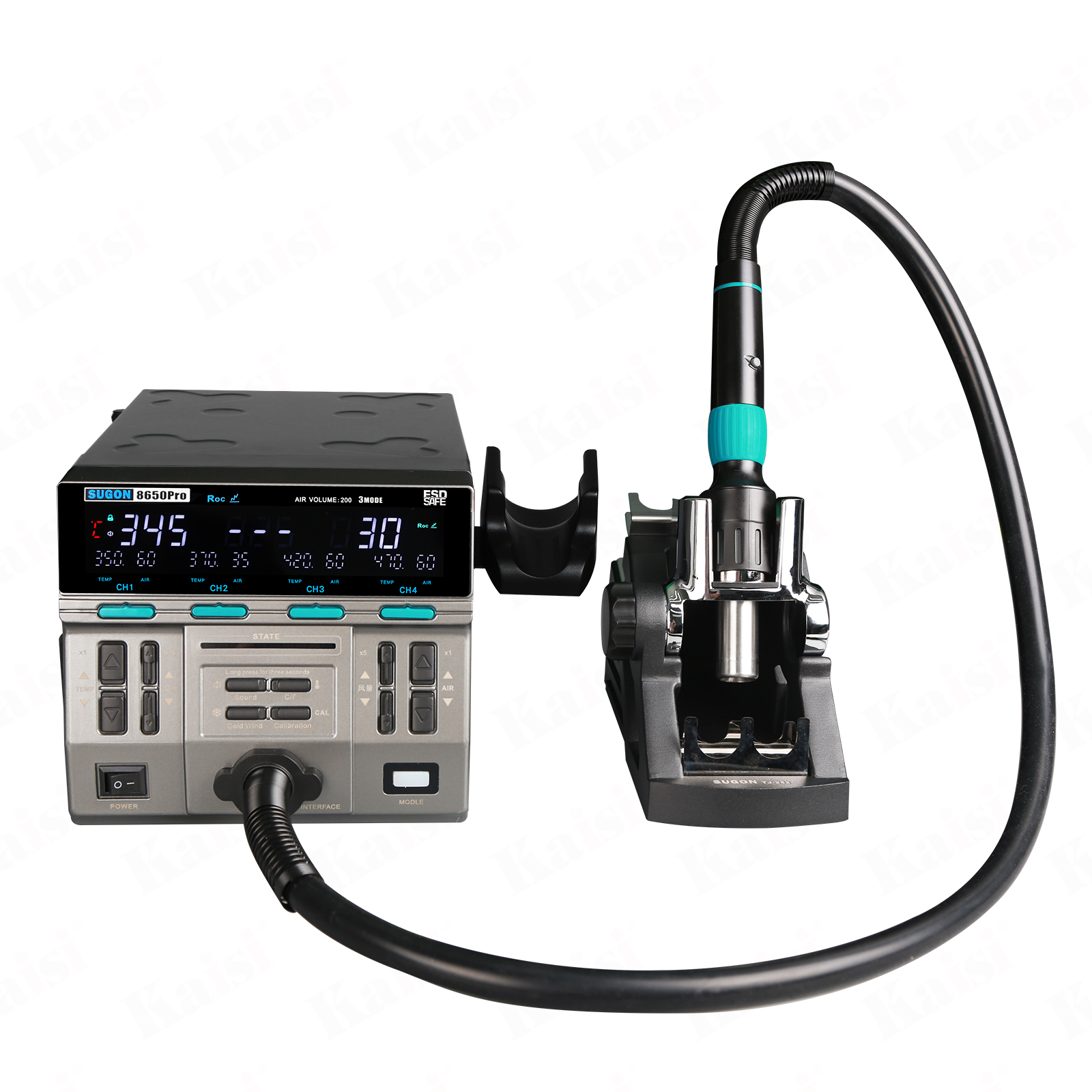

8650pro Curve Edition

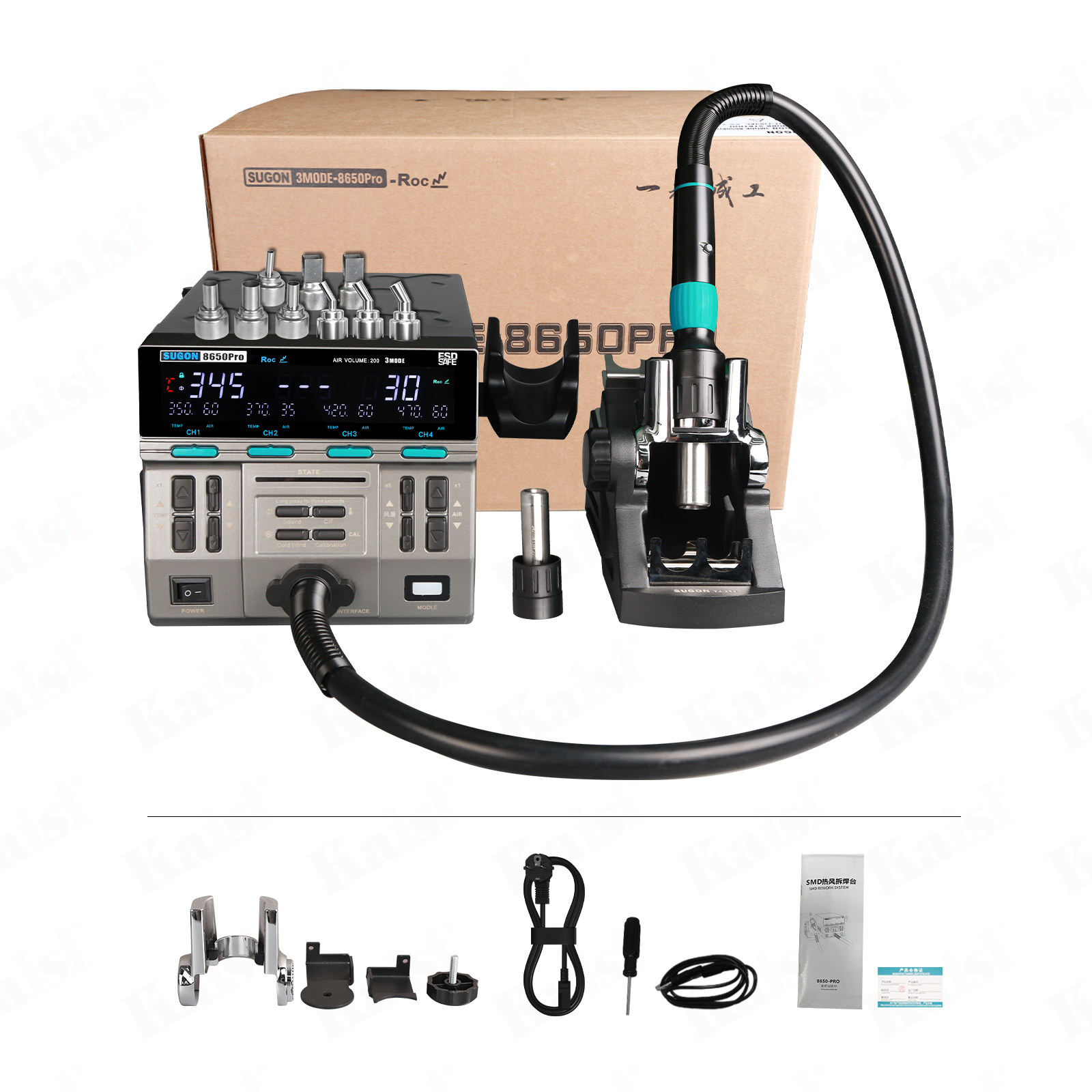

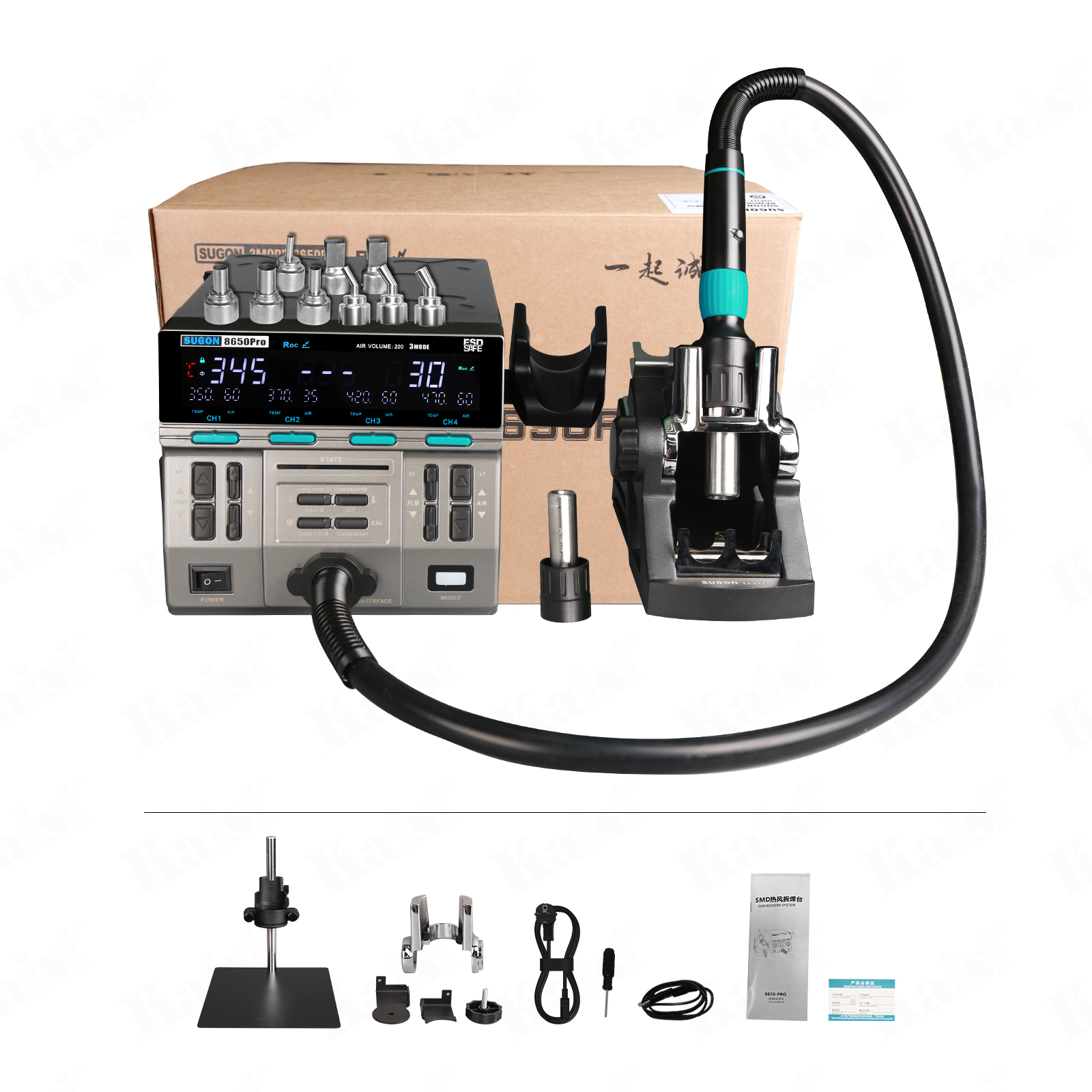

1. 8650pro host x 1
2. 11b integrated core x 1
3. Wind nozzle x 6
4. 252 bracket x 1
5. Wind nozzle gasket x 2
6. Instruction manual x 1
7. Power cord x 1
8. 252 Wind Gun Rack Assembly Conversion Parts × 4
Back To List

Product introductionProduct featuresProduct specification

Curve mode Roc introduction. Preset 3 groups of working interval, each group can be free to set the preheating temperature and heating time, each group of temperature reaches the preset temperature automatically into the working mode of the first group, when the third group of temperature reaches, the machine beeps, then the welding operation can be carried out. After entering the Roc curve mode, the machine panel will display the current stage, real-time temperature, air volume and working countdown, and automatically jump to the next stage after the completion of each stage until the three stages of heating are completed. Since the first and second sections are preheating, it is only necessary to set the temperature air volume of the third section, and the temperature air volume of each section can be freely set, and the longest working time is 330 seconds

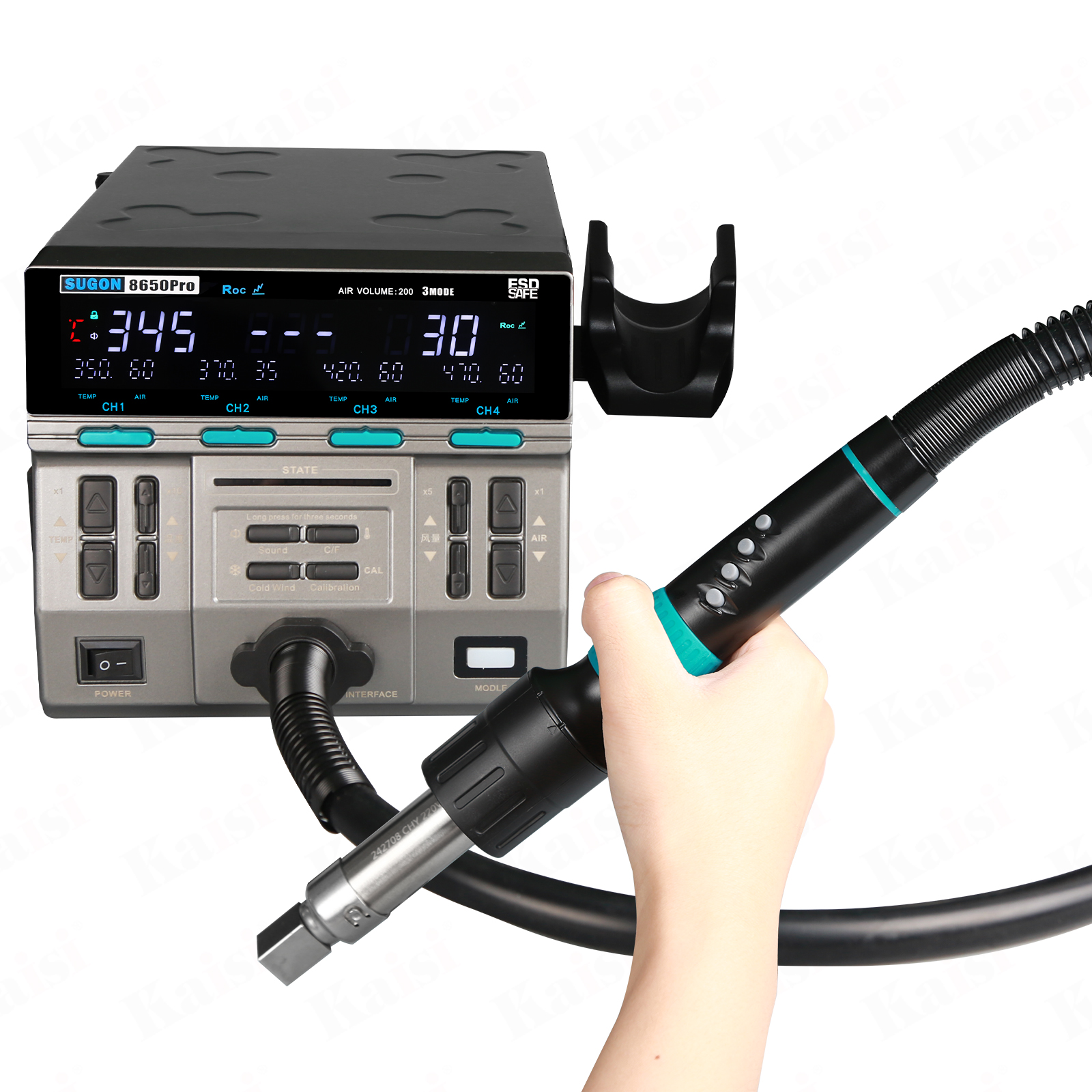

1. Upgrade the handle of the new air gun, with a significantly improved appearance compared to the original version, smaller buttons, and the addition of a wire control function while retaining the original 4 sets of working memory. Specifically, in curve mode, the handle buttons ch1/ch2 are used for temperature settings, ch3/ch4 are used for air volume settings, and the cold air button is the key to turn on the curve mode. Long press for 3 seconds to restore the cold air function.
2. Upgraded knob heating element, no need for screws to fix, can be unlocked and replaced by hand, comes standard with one 7A and one 11b heating element each.

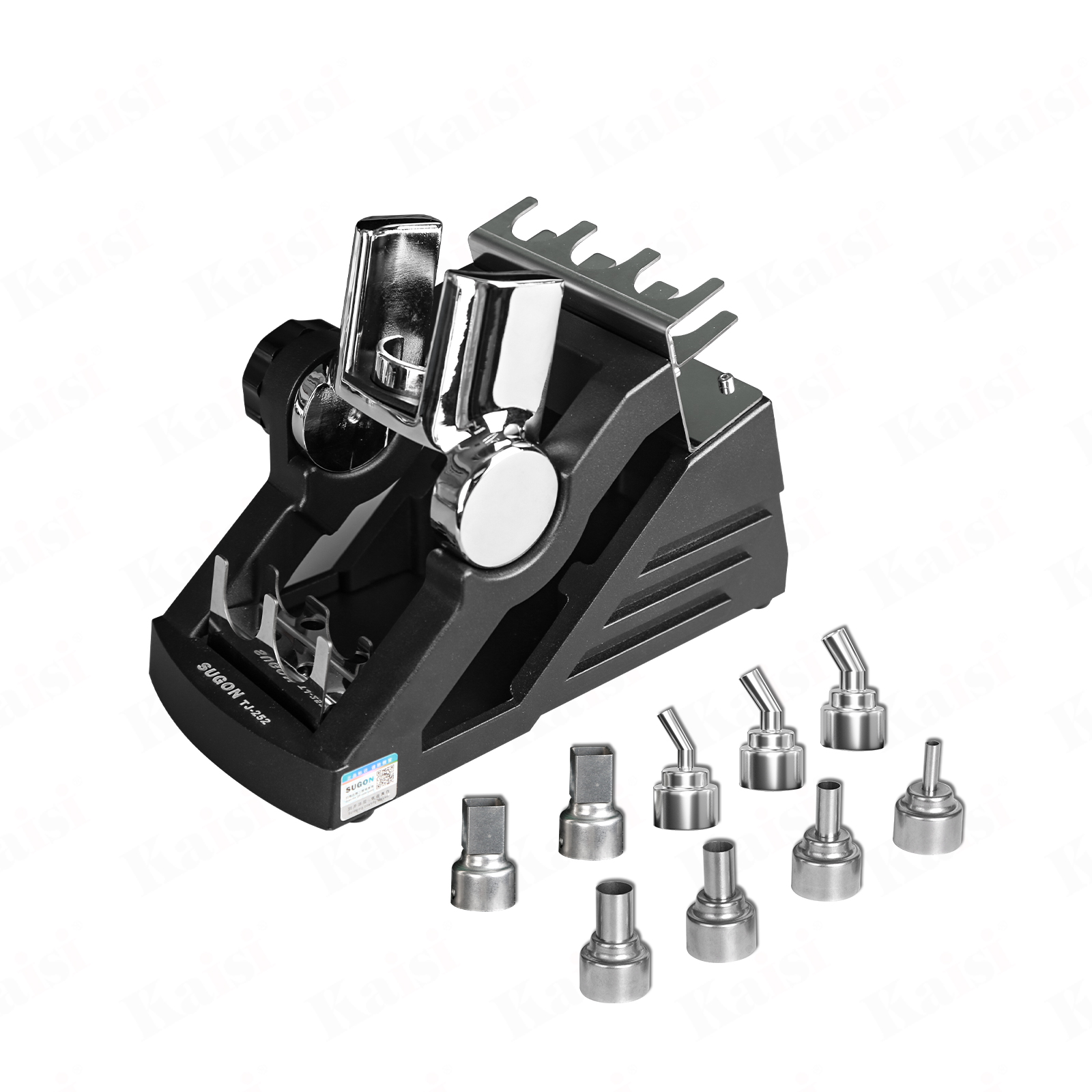

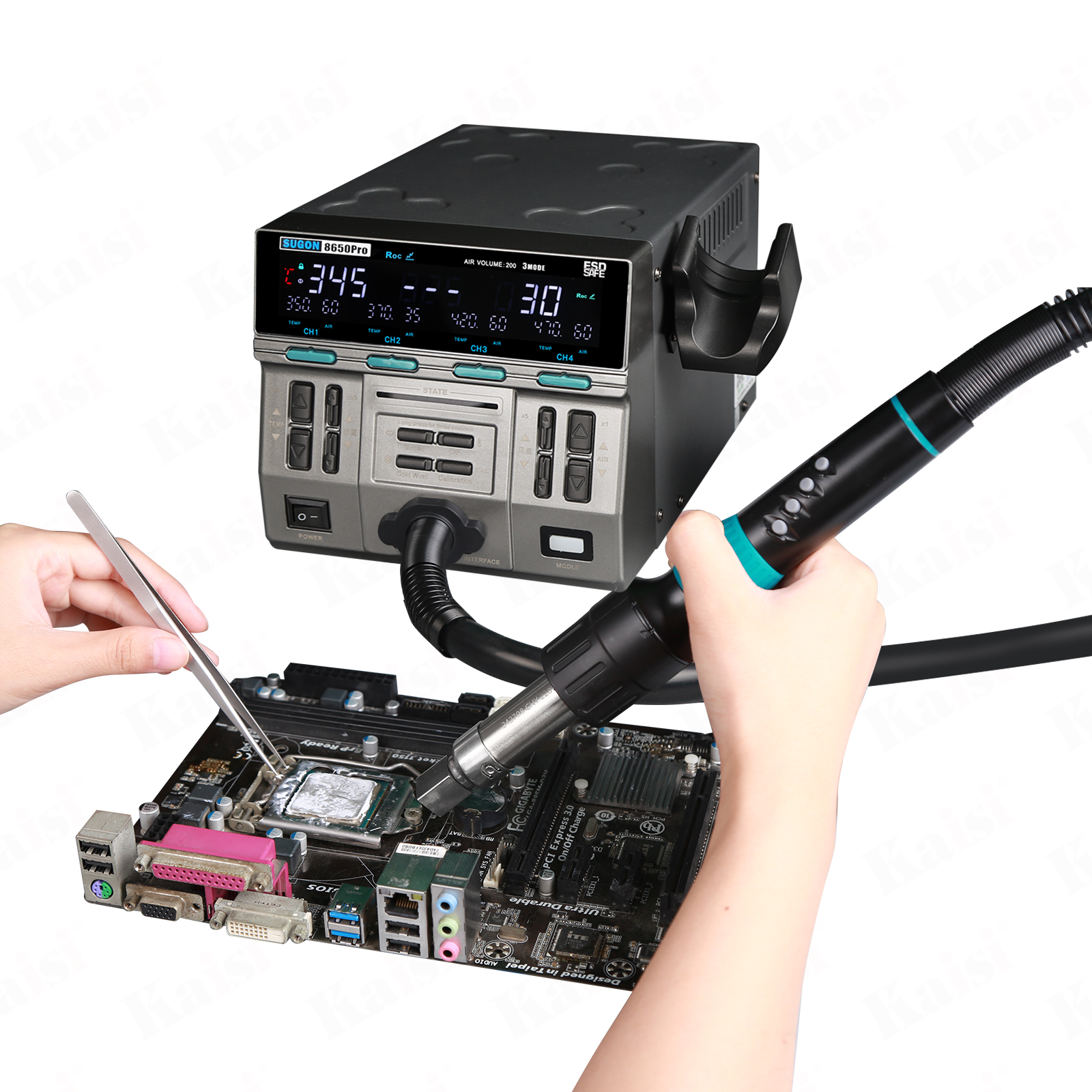

3. Add one 15 * 15mm and one 15 * 17mm air nozzle each, combined with a dedicated air gun holder, for more precise and convenient disassembly and soldering of the motherboard.
4. Upgrade the 252 rack to have an additional front plug socket compared to the 251.
5. Upgrade the heating element giant 8650pro professional version, which is not universal

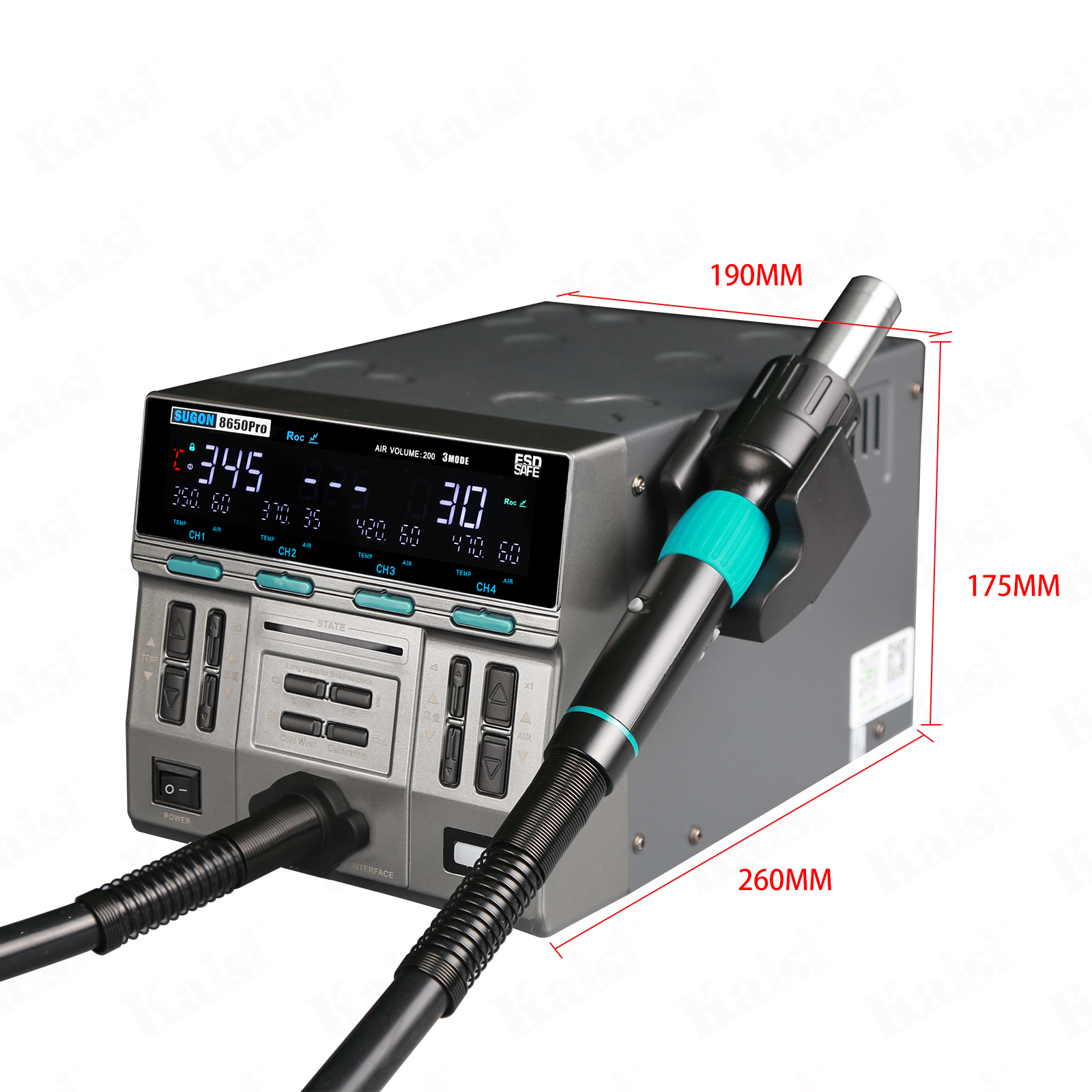

size:190 x 260 x 170mm
Inner box weight:8.7kg
Carton size:25cm*25cm*16cmmm
Carton weight:*KG
Temperature range:100℃-550℃
Power:1300W
