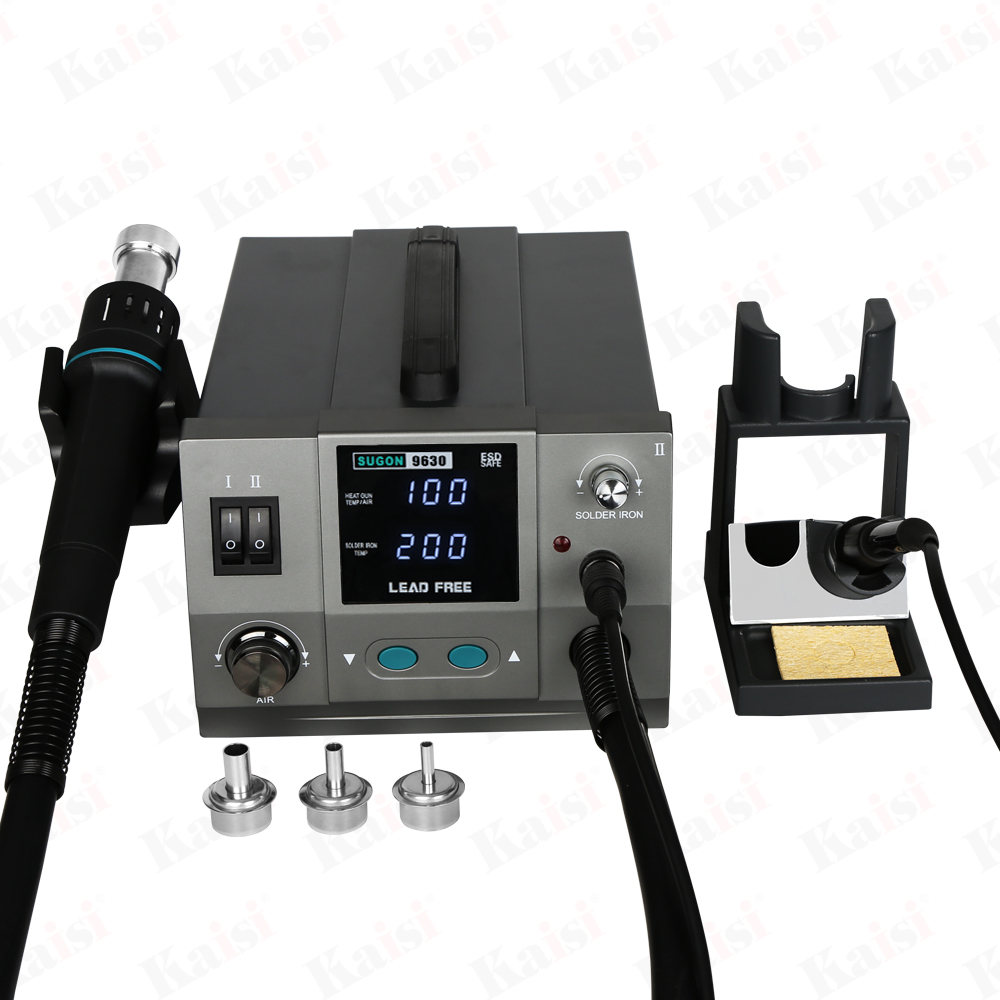

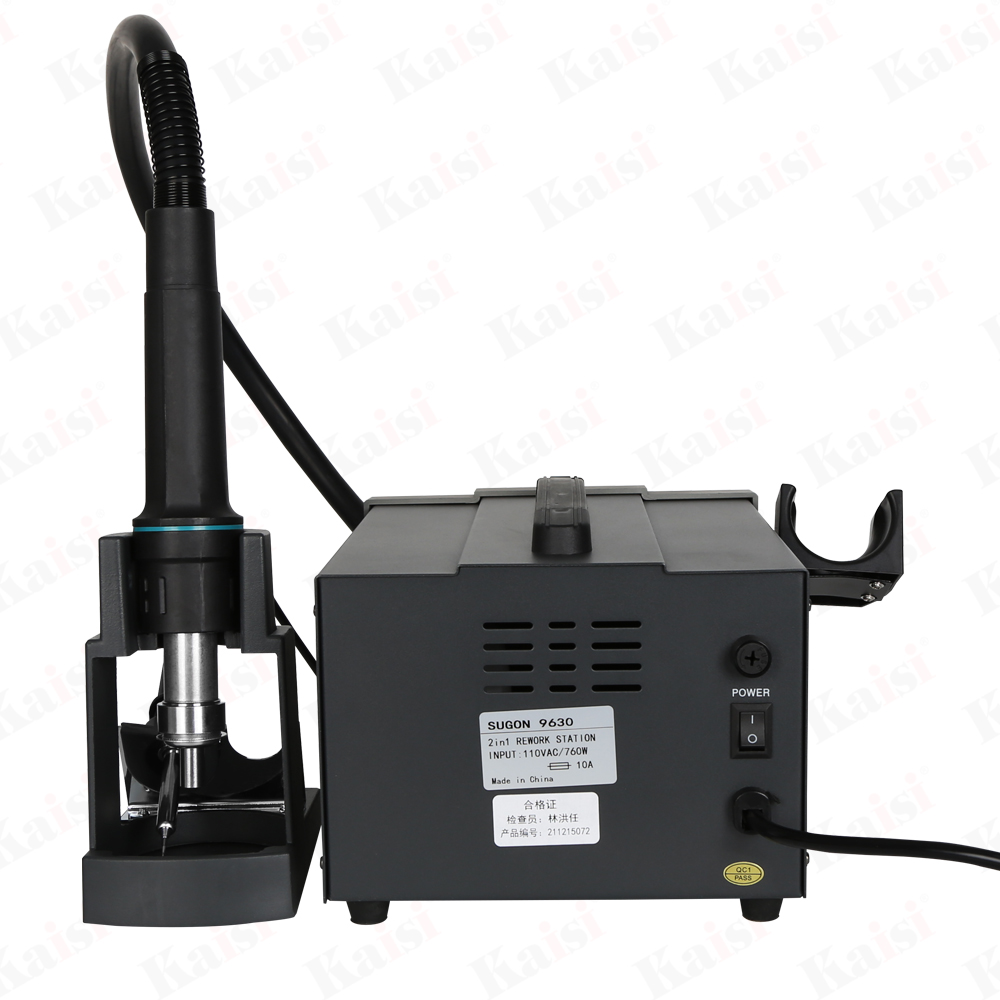

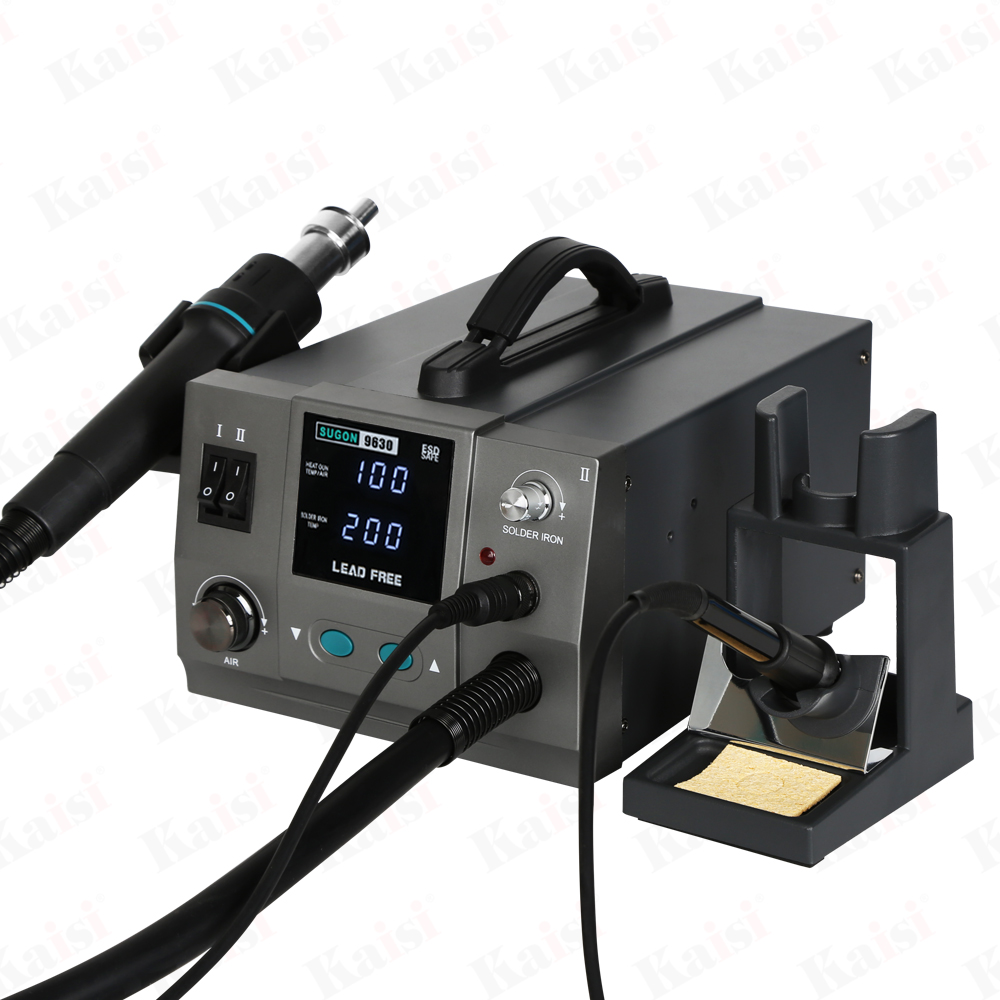

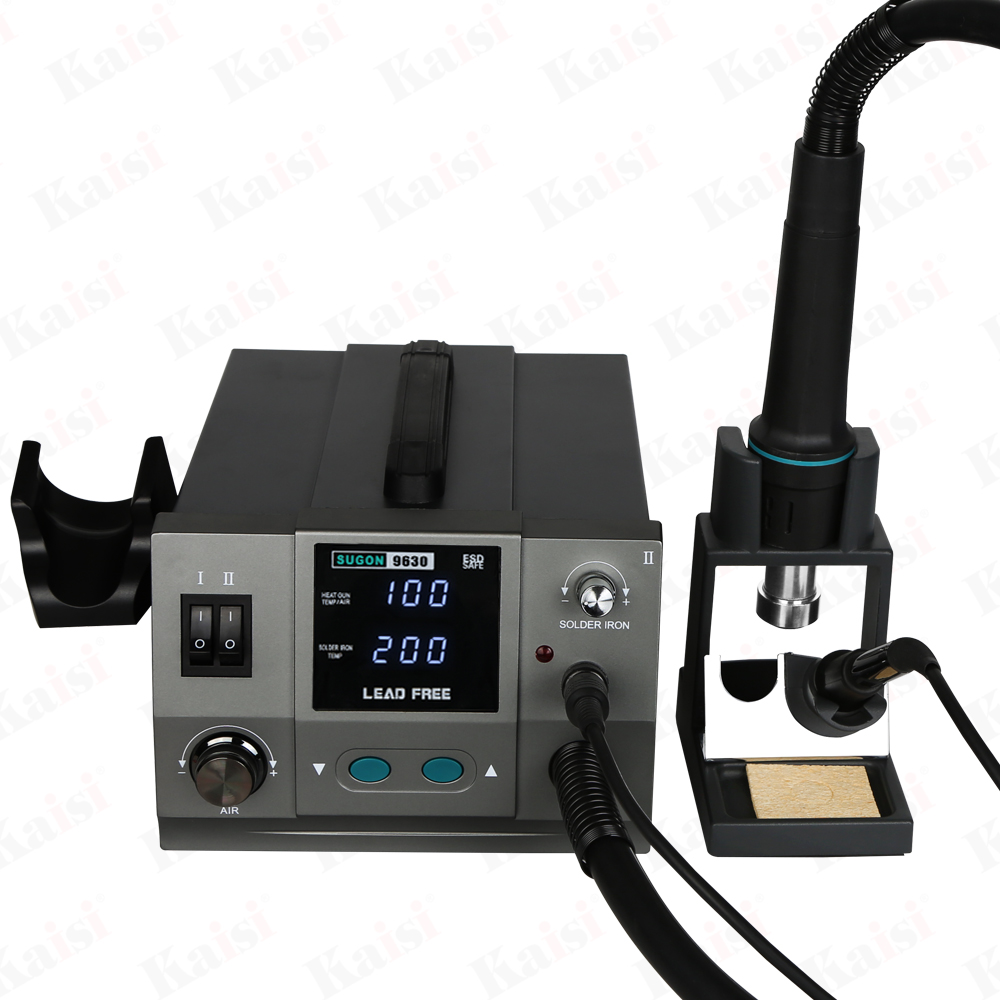

SG-9630

1. It is easy to operate in real time. It is controlled by magnetic control switch. When the handle is placed on the handle frame, it will immediately enter sleep.
2. It has automatic sleep function, and parameters can be set in sleep state.
3. Closed loop sensor, microcomputer zero crossing trigger temperature control, high power, rapid temperature rise, convenient, accurate and stable temperature regulation, not affected by air output.
4. Brushless eddy current fan is adopted, with adjustable wind volume and air flow and wide range, which can be used for a variety of purposes
Back To List

Product introductionProduct featuresProduct specification

1. It is easy to operate in real time. It is controlled by magnetic control switch. When the handle is placed on the handle frame, it will immediately enter sleep.
2. It has automatic sleep function, and parameters can be set in sleep state.
3. Closed loop sensor, microcomputer zero crossing trigger temperature control, high power, rapid temperature rise, convenient, accurate and stable temperature regulation, not affected by air output.
4. Brushless eddy current fan is adopted, with adjustable wind volume and air flow and wide range, which can be used for a variety of purposes
1. Suitable for disassembly and welding of various components, such as SOIC, chip, QFP, PLCC, BGA, etc
2. Suitable for heat shrinkage, drying, paint removal, sticking removal, thawing, preheating, disinfection, glue welding, etc
3. Adjustable air volume, suitable for occasions requiring small air volume and large air volume heating
4. It is suitable for lead-free hot air disassembly and welding
Overall dimension:18.8 x 24.5 x 13.5CM
Inner box weight:3.65kg
Temperature range of air gun:100℃-500℃   212℉-932℉
Soldering iron temperature range:200℃-500℃  392℉-932℉
Air volume range:Grade 20-100
Power:760W
